Working with Dynamic Regions in Oracle ADF

Hi all,

I will extend my old post "Creating Pages with Regions in Oracle ADF" here so now i will show you how to work with Dynamic Region.

Note: Updated on 23-Sep-2010 Identified bug in the sample code. Thanks Asim and Pino

What is Dynamic Region?

According to Oracle docs:
An ADF dynamic region is an ADF region where the task flow binding dynamically
determines the value of its taskFlowId attribute at runtime. This allows the Fusion
web application to determine which bounded task flow to execute within the ADF
dynamic region based on the result of evaluation of the task flow binding’s
taskFlowId attribute.

In this example:
- We will have 2 Bounded task flow one will show the list view of the Employee table and other shows the form style view
- We will have a home page with 2 different button to activate the particular region.

As shown the runtime view of the use case.




Steps to follow:
(I assumed you already have enough ADF experience now if not feel free to check ADF section on this blog)

1) Create 2 bounded task flows with page fragments, named list-flow and form-flow respectively.
2) Create view activities on these pages one each.
3) Drag and drop the collection from data control and design your page as your taste.
4) Create a new activity in adfc-config flow called Home
5) Create home page by choosing default 2 column template as shown in the slide


6) Create 2 button on the first facet labeled as List and Form respectively.
7) Drag a List-flow to second facet and choose Dynamic Region from the menu
8) Create a Managed Bean named "DynamicRegionBean" class "DynamicRegion" Press OK Scope must be viewScope
9) We are not passing parameters to our Task flow so we will keep this default press OK

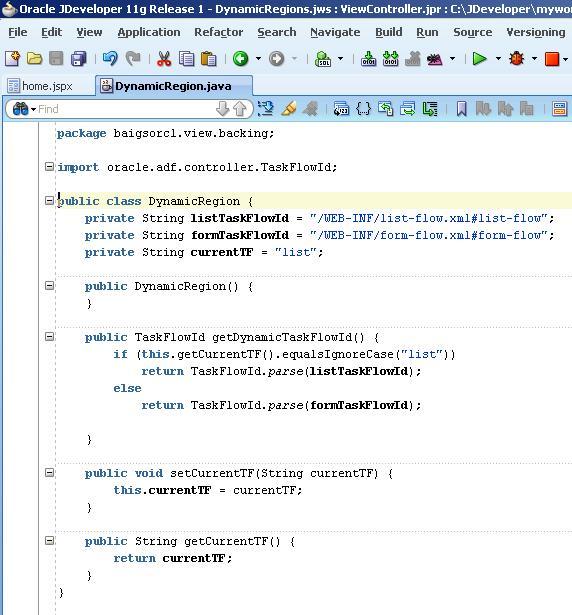

10) Change the code in the DynamicRegion class as following the method getDynamicTaskFlowId()  returns the TaskflowId of the BTF so we have changed our code to return the ID dynamically


11) Drag and drop af:setPropertyListener to both buttons on HOME page set values to static string as 'list' and 'form' respectively as shown in the slide

12) Set the partial submit to true on both these buttons and set partial triggers property to button ids in af:region component.

Thats all you are ready Run the page Press Form button the form-flow will appear press List button the other view appears




More Reading: Oracle Fusion Developer Guide Working with Dynamic Regions

Download the example workspace


Note: This example is to show how to Dynamic Regions works, When you have more than couple Regions then its better to write the Region code logic in a separate java class for ease of maintenance and import that class in DynamicRegionBean class.


Have a nice day,
Baig
